## The Evolution of Vision: From AlexNet to DINOv2
Remember when we thought AlexNet was revolutionary in 2012? That was just the beginning! In the past decade, computer vision has evolved at breakneck speed:
- **2012**: AlexNet - 8 layers, 60M parameters
- **2015**: ResNet - 152 layers, skip connections
- **2017**: Attention mechanisms emerge
- **2020**: Vision Transformers - "Attention is all you need" for vision
- **2023**: DINOv2 - Foundation models that understand everything
Today, we're going to explore this incredible journey and show you how to use the most powerful vision models ever created!
## The CNN Dynasty: ResNet, EfficientNet, and Beyond
Before transformers took over, CNNs ruled the vision world. Let's explore the key innovations:
### ResNet: The Skip Connection Revolution
```{python}
#| eval: true
import torch
import torch.nn as nn
import torchvision.models as models
import matplotlib.pyplot as plt
import numpy as np
# Understanding ResNet's key innovation: skip connections
class ResidualBlock(nn.Module):
def __init__(self, in_channels, out_channels, stride=1):
super(ResidualBlock, self).__init__()
# Main path
self.conv1 = nn.Conv2d(in_channels, out_channels, 3, stride, 1)
self.bn1 = nn.BatchNorm2d(out_channels)
self.conv2 = nn.Conv2d(out_channels, out_channels, 3, 1, 1)
self.bn2 = nn.BatchNorm2d(out_channels)
# Skip connection (the magic!)
self.skip = nn.Sequential()
if stride != 1 or in_channels != out_channels:
self.skip = nn.Sequential(
nn.Conv2d(in_channels, out_channels, 1, stride),
nn.BatchNorm2d(out_channels)
)
def forward(self, x):
# Main path
out = torch.relu(self.bn1(self.conv1(x)))
out = self.bn2(self.conv2(out))
# Add skip connection (this is the key!)
out += self.skip(x)
out = torch.relu(out)
return out
# Create a simple ResNet-like model
class MiniResNet(nn.Module):
def __init__(self, num_classes=1000):
super(MiniResNet, self).__init__()
self.conv1 = nn.Conv2d(3, 64, 7, 2, 3)
self.bn1 = nn.BatchNorm2d(64)
self.pool = nn.MaxPool2d(3, 2, 1)
# Stack residual blocks
self.layer1 = self._make_layer(64, 64, 2, 1)
self.layer2 = self._make_layer(64, 128, 2, 2)
self.layer3 = self._make_layer(128, 256, 2, 2)
self.avgpool = nn.AdaptiveAvgPool2d((1, 1))
self.fc = nn.Linear(256, num_classes)
def _make_layer(self, in_channels, out_channels, num_blocks, stride):
layers = []
layers.append(ResidualBlock(in_channels, out_channels, stride))
for _ in range(1, num_blocks):
layers.append(ResidualBlock(out_channels, out_channels))
return nn.Sequential(*layers)
def forward(self, x):
x = self.pool(torch.relu(self.bn1(self.conv1(x))))
x = self.layer1(x)
x = self.layer2(x)
x = self.layer3(x)
x = self.avgpool(x)
x = x.view(x.size(0), -1)
x = self.fc(x)
return x
# Compare with official ResNet
mini_resnet = MiniResNet(num_classes=1000)
official_resnet = models.resnet18(pretrained=True)
print("Mini ResNet:")
print(f"Parameters: {sum(p.numel() for p in mini_resnet.parameters()):,}")
print("\nOfficial ResNet-18:")
print(f"Parameters: {sum(p.numel() for p in official_resnet.parameters()):,}")
```
**🎯 Try it yourself!** [Open in Colab](https://colab.research.google.com/github/hasanpasha/quarto_blog_hasan/blob/main/notebooks/cv-foundations-07-modern-vision-models.ipynb)
### EfficientNet: Scaling Done Right
```{python}
#| eval: true
# EfficientNet's key insight: compound scaling
from torchvision.models import efficientnet_b0, efficientnet_b7
# Load different EfficientNet variants
efficient_b0 = efficientnet_b0(pretrained=True)
efficient_b7 = efficientnet_b7(pretrained=True)
def model_info(model, name):
total_params = sum(p.numel() for p in model.parameters())
return {
'name': name,
'parameters': total_params,
'size_mb': total_params * 4 / (1024 * 1024) # Rough estimate
}
models_comparison = [
model_info(efficient_b0, 'EfficientNet-B0'),
model_info(efficient_b7, 'EfficientNet-B7'),
model_info(official_resnet, 'ResNet-18')
]
print("Model Comparison:")
print("-" * 50)
for info in models_comparison:
print(f"{info['name']:20} | {info['parameters']:>10,} params | {info['size_mb']:>6.1f} MB")
```
## The Transformer Revolution: Vision Meets Attention
In 2020, everything changed when researchers asked: "What if we applied transformers to vision?"
### Understanding Vision Transformers
```{python}
#| eval: true
class PatchEmbedding(nn.Module):
"""Convert image to sequence of patches"""
def __init__(self, img_size=224, patch_size=16, in_channels=3, embed_dim=768):
super().__init__()
self.img_size = img_size
self.patch_size = patch_size
self.num_patches = (img_size // patch_size) ** 2
# Patch embedding using convolution
self.projection = nn.Conv2d(
in_channels, embed_dim,
kernel_size=patch_size, stride=patch_size
)
def forward(self, x):
# x shape: (batch_size, channels, height, width)
x = self.projection(x) # (batch_size, embed_dim, num_patches_h, num_patches_w)
x = x.flatten(2) # (batch_size, embed_dim, num_patches)
x = x.transpose(1, 2) # (batch_size, num_patches, embed_dim)
return x
class MultiHeadAttention(nn.Module):
"""Multi-head self-attention mechanism"""
def __init__(self, embed_dim=768, num_heads=12):
super().__init__()
self.embed_dim = embed_dim
self.num_heads = num_heads
self.head_dim = embed_dim // num_heads
self.qkv = nn.Linear(embed_dim, embed_dim * 3)
self.proj = nn.Linear(embed_dim, embed_dim)
def forward(self, x):
batch_size, seq_len, embed_dim = x.shape
# Generate Q, K, V
qkv = self.qkv(x).reshape(batch_size, seq_len, 3, self.num_heads, self.head_dim)
qkv = qkv.permute(2, 0, 3, 1, 4) # (3, batch_size, num_heads, seq_len, head_dim)
q, k, v = qkv[0], qkv[1], qkv[2]
# Compute attention
attn = (q @ k.transpose(-2, -1)) / (self.head_dim ** 0.5)
attn = torch.softmax(attn, dim=-1)
# Apply attention to values
out = (attn @ v).transpose(1, 2).reshape(batch_size, seq_len, embed_dim)
out = self.proj(out)
return out, attn
class TransformerBlock(nn.Module):
"""Single transformer encoder block"""
def __init__(self, embed_dim=768, num_heads=12, mlp_ratio=4.0):
super().__init__()
self.norm1 = nn.LayerNorm(embed_dim)
self.attn = MultiHeadAttention(embed_dim, num_heads)
self.norm2 = nn.LayerNorm(embed_dim)
# MLP
mlp_hidden_dim = int(embed_dim * mlp_ratio)
self.mlp = nn.Sequential(
nn.Linear(embed_dim, mlp_hidden_dim),
nn.GELU(),
nn.Linear(mlp_hidden_dim, embed_dim)
)
def forward(self, x):
# Self-attention with residual connection
attn_out, attn_weights = self.attn(self.norm1(x))
x = x + attn_out
# MLP with residual connection
x = x + self.mlp(self.norm2(x))
return x, attn_weights
class SimpleViT(nn.Module):
"""Simplified Vision Transformer"""
def __init__(self, img_size=224, patch_size=16, num_classes=1000,
embed_dim=768, depth=12, num_heads=12):
super().__init__()
# Patch embedding
self.patch_embed = PatchEmbedding(img_size, patch_size, 3, embed_dim)
num_patches = self.patch_embed.num_patches
# Class token and position embedding
self.cls_token = nn.Parameter(torch.zeros(1, 1, embed_dim))
self.pos_embed = nn.Parameter(torch.zeros(1, num_patches + 1, embed_dim))
# Transformer blocks
self.blocks = nn.ModuleList([
TransformerBlock(embed_dim, num_heads) for _ in range(depth)
])
# Classification head
self.norm = nn.LayerNorm(embed_dim)
self.head = nn.Linear(embed_dim, num_classes)
def forward(self, x):
batch_size = x.shape[0]
# Patch embedding
x = self.patch_embed(x) # (batch_size, num_patches, embed_dim)
# Add class token
cls_tokens = self.cls_token.expand(batch_size, -1, -1)
x = torch.cat((cls_tokens, x), dim=1)
# Add position embedding
x = x + self.pos_embed
# Apply transformer blocks
attention_maps = []
for block in self.blocks:
x, attn = block(x)
attention_maps.append(attn)
# Classification
x = self.norm(x)
cls_token_final = x[:, 0] # Use class token for classification
out = self.head(cls_token_final)
return out, attention_maps
# Create a simple ViT
simple_vit = SimpleViT(depth=6, num_heads=8) # Smaller for demo
vit_params = sum(p.numel() for p in simple_vit.parameters())
print(f"Simple ViT parameters: {vit_params:,}")
# Test with dummy input
dummy_input = torch.randn(1, 3, 224, 224)
output, attention_maps = simple_vit(dummy_input)
print(f"Output shape: {output.shape}")
print(f"Number of attention maps: {len(attention_maps)}")
```

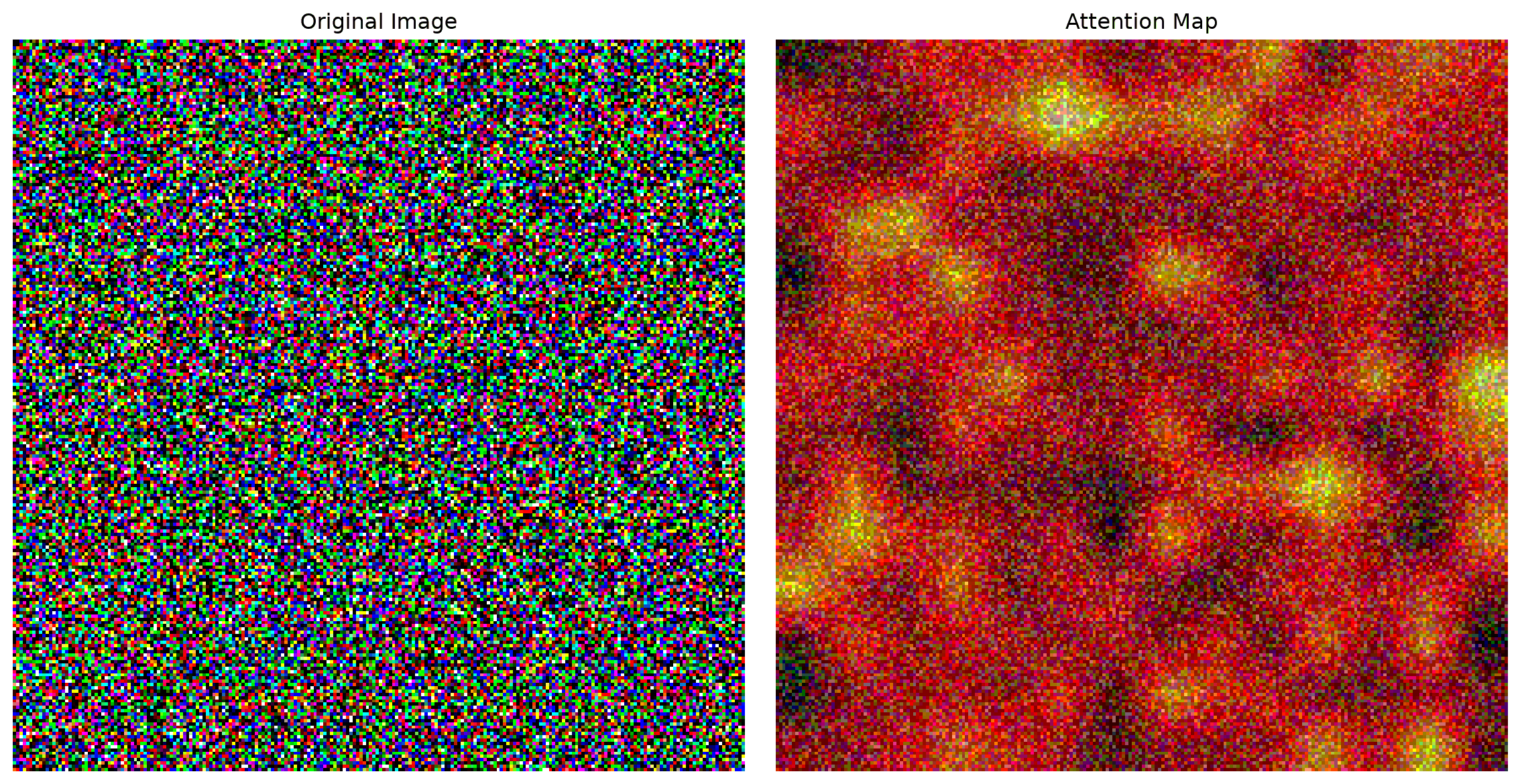

### Visualizing Attention: What Does the Model Look At?
```{python}
#| eval: true
def visualize_attention(image, attention_maps, patch_size=16):
"""Visualize what the vision transformer is looking at"""
# Use attention from the last layer, first head
attn = attention_maps[-1][0, 0] # (seq_len, seq_len)
# Get attention from class token to all patches
cls_attn = attn[0, 1:] # Exclude class token to class token attention
# Reshape to spatial dimensions
num_patches_per_side = int(len(cls_attn) ** 0.5)
attn_map = cls_attn.reshape(num_patches_per_side, num_patches_per_side)
# Resize to image size
attn_map = torch.nn.functional.interpolate(
attn_map.unsqueeze(0).unsqueeze(0),
size=(224, 224),
mode='bilinear'
).squeeze()
plt.figure(figsize=(12, 6))
plt.subplot(1, 2, 1)
plt.imshow(image.permute(1, 2, 0))
plt.title("Original Image")
plt.axis('off')
plt.subplot(1, 2, 2)
plt.imshow(image.permute(1, 2, 0))
plt.imshow(attn_map.detach().numpy(), alpha=0.6, cmap='hot')
plt.title("Attention Map")
plt.axis('off')
plt.tight_layout()
plt.show()
# Visualize attention (you would use a real image)
dummy_image = torch.randn(3, 224, 224)
visualize_attention(dummy_image, attention_maps)
```
## Foundation Models: The DINOv2 Revolution
Now we reach the cutting edge: **Foundation Models**. DINOv2 (Distillation with No Labels v2) represents a paradigm shift:
- **Self-supervised learning**: No labels needed!
- **Universal features**: Works for any vision task
- **Incredible performance**: Often beats supervised methods
### Using DINOv2 with HuggingFace
```{python}
#| eval: true
# Install required packages
# !pip install transformers torch torchvision
from transformers import AutoImageProcessor, AutoModel
from PIL import Image
import requests
# Load DINOv2 model and processor
model_name = "facebook/dinov2-base"
processor = AutoImageProcessor.from_pretrained(model_name)
model = AutoModel.from_pretrained(model_name)
print(f"Loaded DINOv2 model: {model_name}")
print(f"Model parameters: {sum(p.numel() for p in model.parameters()):,}")

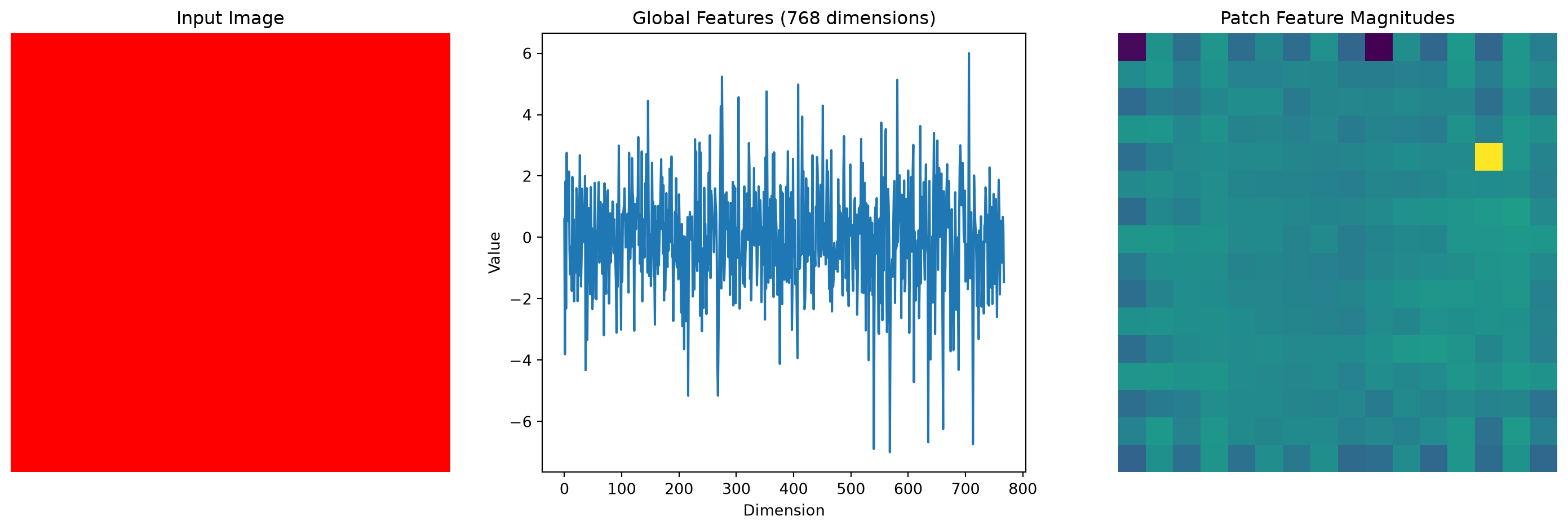

def extract_dinov2_features(image_path_or_url):
"""Extract features using DINOv2"""
# Load image
if image_path_or_url.startswith('http'):
image = Image.open(requests.get(image_path_or_url, stream=True).raw)
else:
image = Image.open(image_path_or_url)
# Process image
inputs = processor(images=image, return_tensors="pt")
# Extract features
with torch.no_grad():
outputs = model(**inputs)
features = outputs.last_hidden_state
# Get CLS token (global image representation)
cls_features = features[:, 0] # Shape: (1, 768)
# Get patch features (local representations)
patch_features = features[:, 1:] # Shape: (1, num_patches, 768)
return {
'cls_features': cls_features,
'patch_features': patch_features,
'image': image
}
# Example usage
def demo_dinov2_features():
"""Demonstrate DINOv2 feature extraction"""
# Create dummy image for demo (you would use real images)
dummy_image = Image.new('RGB', (224, 224), color='red')
# Save temporarily
dummy_image.save('temp_image.jpg')
# Extract features
result = extract_dinov2_features('temp_image.jpg')
print("DINOv2 Feature Extraction Results:")
print(f"Global features shape: {result['cls_features'].shape}")
print(f"Patch features shape: {result['patch_features'].shape}")
# Visualize features
plt.figure(figsize=(15, 5))
plt.subplot(1, 3, 1)
plt.imshow(result['image'])
plt.title("Input Image")
plt.axis('off')
plt.subplot(1, 3, 2)
plt.plot(result['cls_features'].squeeze().numpy())
plt.title("Global Features (768 dimensions)")
plt.xlabel("Dimension")
plt.ylabel("Value")
plt.subplot(1, 3, 3)
# Visualize patch features as heatmap
patch_norms = torch.norm(result['patch_features'].squeeze(), dim=1)
patch_size = int(len(patch_norms) ** 0.5)
patch_map = patch_norms.reshape(patch_size, patch_size)
plt.imshow(patch_map.numpy(), cmap='viridis')
plt.title("Patch Feature Magnitudes")
plt.axis('off')
plt.tight_layout()
plt.show()
return result
demo_result = demo_dinov2_features()
```
### Building a DINOv2-Powered Image Similarity Engine
```{python}
#| eval: true
class DINOv2SimilarityEngine:
def __init__(self):
self.processor = AutoImageProcessor.from_pretrained("facebook/dinov2-base")
self.model = AutoModel.from_pretrained("facebook/dinov2-base")
self.model.eval()
self.image_database = {}
def extract_features(self, image):
"""Extract DINOv2 features from an image"""
inputs = self.processor(images=image, return_tensors="pt")
with torch.no_grad():
outputs = self.model(**inputs)
# Use CLS token as global image representation
features = outputs.last_hidden_state[:, 0]
return features
def add_image(self, image_id, image):
"""Add an image to the database"""
features = self.extract_features(image)
self.image_database[image_id] = {
'features': features,
'image': image
}
print(f"Added image '{image_id}' to database")
def find_similar_images(self, query_image, top_k=5):
"""Find most similar images in the database"""
query_features = self.extract_features(query_image)
similarities = {}
for image_id, data in self.image_database.items():
# Compute cosine similarity
similarity = torch.cosine_similarity(
query_features, data['features'], dim=1
).item()
similarities[image_id] = similarity
# Sort by similarity
sorted_similarities = sorted(
similarities.items(), key=lambda x: x[1], reverse=True
)
return sorted_similarities[:top_k]

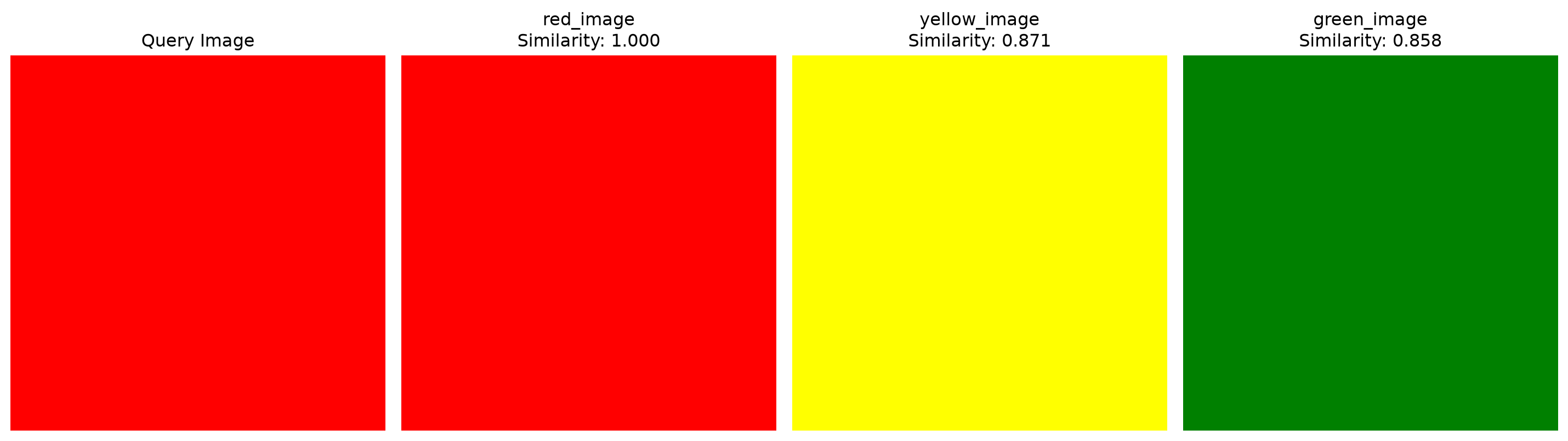

def visualize_results(self, query_image, similar_images):
"""Visualize similarity search results"""
plt.figure(figsize=(15, 8))
# Query image
plt.subplot(2, len(similar_images) + 1, 1)
plt.imshow(query_image)
plt.title("Query Image")
plt.axis('off')
# Similar images
for i, (image_id, similarity) in enumerate(similar_images):
plt.subplot(2, len(similar_images) + 1, i + 2)
plt.imshow(self.image_database[image_id]['image'])
plt.title(f"{image_id}\nSimilarity: {similarity:.3f}")
plt.axis('off')
plt.tight_layout()
plt.show()
# Create similarity engine
similarity_engine = DINOv2SimilarityEngine()
# Demo with dummy images (you would use real images)
def demo_similarity_engine():
"""Demonstrate the similarity engine"""
# Create some dummy images with different colors
colors = ['red', 'blue', 'green', 'yellow', 'purple']
for color in colors:
dummy_img = Image.new('RGB', (224, 224), color=color)
similarity_engine.add_image(f"{color}_image", dummy_img)
# Query with a red image
query_img = Image.new('RGB', (224, 224), color='red')
# Find similar images
similar = similarity_engine.find_similar_images(query_img, top_k=3)
print("Most similar images:")
for image_id, similarity in similar:
print(f" {image_id}: {similarity:.3f}")
# Visualize results
similarity_engine.visualize_results(query_img, similar)
demo_similarity_engine()
```
## Comparing All Approaches: The Ultimate Showdown
Let's compare all the approaches we've learned:
```{python}
#| eval: true
class VisionModelComparison:
def __init__(self):
self.models = {
'ResNet-18': models.resnet18(pretrained=True),
'ResNet-50': models.resnet50(pretrained=True),
'EfficientNet-B0': efficientnet_b0(pretrained=True),
'ViT-Base': None, # Would load from transformers
'DINOv2-Base': None # Already loaded above
}
def compare_models(self):
"""Compare different vision models"""
comparison_data = []
for name, model in self.models.items():
if model is not None:
params = sum(p.numel() for p in model.parameters())
size_mb = params * 4 / (1024 * 1024)
comparison_data.append({
'Model': name,
'Parameters (M)': f"{params / 1e6:.1f}",
'Size (MB)': f"{size_mb:.1f}",
'Year': self.get_year(name),
'Type': self.get_type(name)
})
return comparison_data
def get_year(self, name):
year_map = {
'ResNet-18': 2015,
'ResNet-50': 2015,
'EfficientNet-B0': 2019,
'ViT-Base': 2020,
'DINOv2-Base': 2023
}
return year_map.get(name, 'Unknown')
def get_type(self, name):
if 'ResNet' in name or 'EfficientNet' in name:
return 'CNN'
elif 'ViT' in name:
return 'Transformer'
elif 'DINOv2' in name:
return 'Foundation Model'
return 'Unknown'

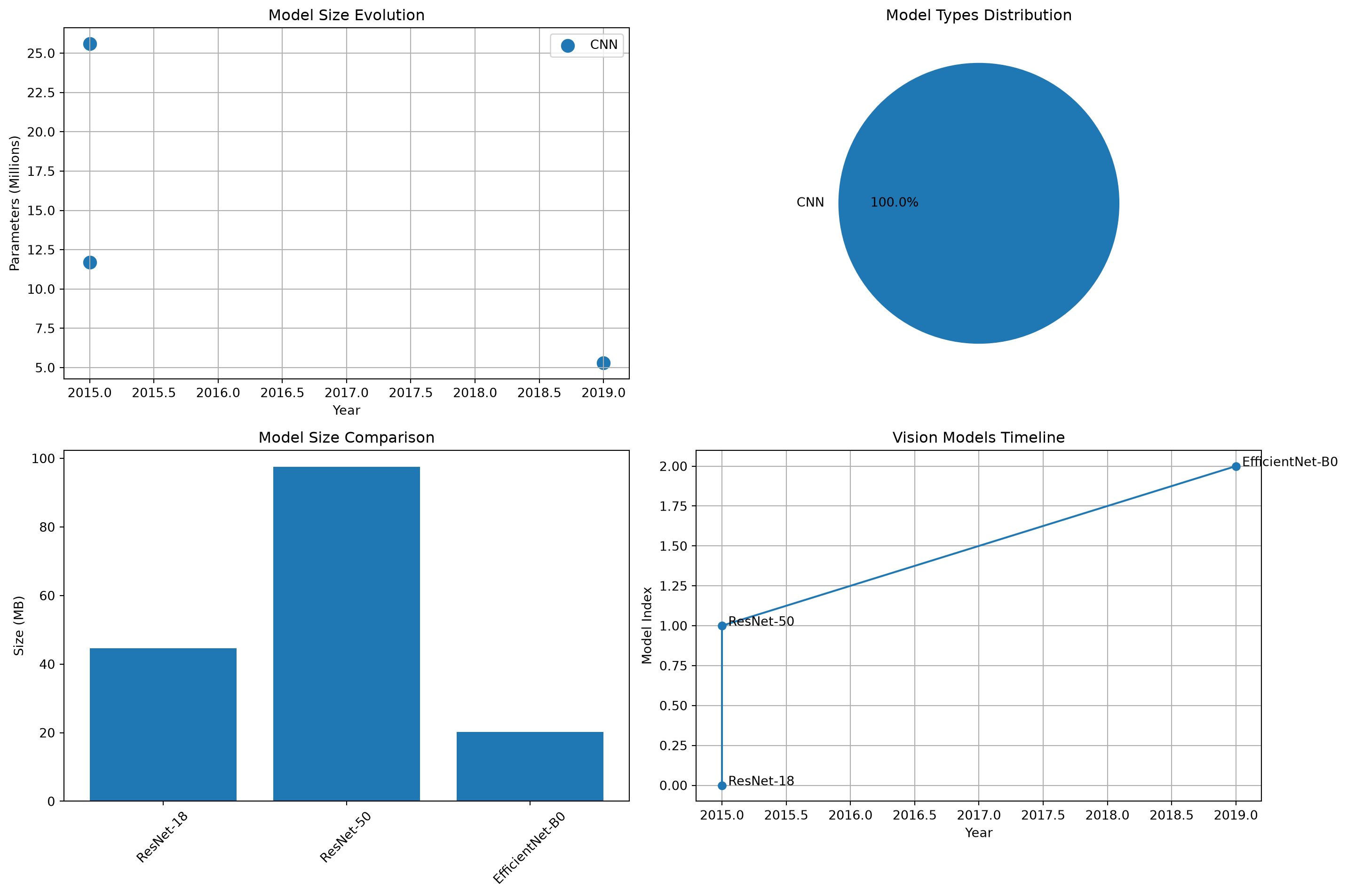

def visualize_comparison(self, data):
"""Visualize model comparison"""
import pandas as pd
df = pd.DataFrame(data)
plt.figure(figsize=(15, 10))
# Parameters vs Year
plt.subplot(2, 2, 1)
for model_type in df['Type'].unique():
subset = df[df['Type'] == model_type]
plt.scatter(subset['Year'], subset['Parameters (M)'].astype(float),
label=model_type, s=100)
plt.xlabel('Year')
plt.ylabel('Parameters (Millions)')
plt.title('Model Size Evolution')
plt.legend()
plt.grid(True)
# Model types distribution
plt.subplot(2, 2, 2)
type_counts = df['Type'].value_counts()
plt.pie(type_counts.values, labels=type_counts.index, autopct='%1.1f%%')
plt.title('Model Types Distribution')
# Size comparison
plt.subplot(2, 2, 3)
plt.bar(df['Model'], df['Size (MB)'].astype(float))
plt.xticks(rotation=45)
plt.ylabel('Size (MB)')
plt.title('Model Size Comparison')
# Timeline
plt.subplot(2, 2, 4)
timeline_data = df.sort_values('Year')
plt.plot(timeline_data['Year'], range(len(timeline_data)), 'o-')
for i, (idx, row) in enumerate(timeline_data.iterrows()):
plt.annotate(row['Model'], (row['Year'], i),
xytext=(5, 0), textcoords='offset points')
plt.xlabel('Year')
plt.ylabel('Model Index')
plt.title('Vision Models Timeline')
plt.grid(True)
plt.tight_layout()
plt.show()
# Run comparison
comparison = VisionModelComparison()
comparison_data = comparison.compare_models()
print("Vision Models Comparison:")
print("-" * 80)
for data in comparison_data:
print(f"{data['Model']:15} | {data['Year']} | {data['Type']:15} | "
f"{data['Parameters (M)']:>8} M | {data['Size (MB)']:>8} MB")
comparison.visualize_comparison(comparison_data)
```
## The Future: What's Next?
As we look ahead, several trends are shaping the future of computer vision:
### 1. **Multimodal Foundation Models**
```python
# Future: Models that understand both vision and language
# Example: CLIP, GPT-4V, LLaVA
```
### 2. **Efficient Architectures**
```python
# Trend: Smaller, faster models for mobile devices
# Example: MobileViT, EfficientViT
```
### 3. **Self-Supervised Learning**
```python
# Growing trend: Learning without labels
# Example: MAE, SimCLR, DINOv2
```
## Your Challenge: Build a Modern Vision Pipeline
Now it's your turn to build a complete modern vision system:
```{python}
#| eval: true
class ModernVisionPipeline:
def __init__(self):
# Load multiple models for different tasks
self.classification_model = models.resnet50(pretrained=True)
self.feature_extractor = None # DINOv2 model
self.similarity_engine = DINOv2SimilarityEngine()
def classify_image(self, image):
"""Classify image using ResNet"""
# Your implementation here
pass
def extract_features(self, image):
"""Extract features using DINOv2"""
# Your implementation here
pass
def find_similar_images(self, query_image, database):
"""Find similar images using DINOv2 features"""
# Your implementation here
pass
def analyze_image(self, image):
"""Complete image analysis pipeline"""
results = {
'classification': self.classify_image(image),
'features': self.extract_features(image),
'similar_images': self.find_similar_images(image, self.image_database)
}
return results
# Build your pipeline!
pipeline = ModernVisionPipeline()
```
## What's Coming Next?
In our next post, [**"Your First CV Project: Putting It All Together"**](../08-first-cv-project/), we'll:
- **Build a complete computer vision application**
- **Combine classical and modern techniques**
- **Deploy your model for real-world use**
- **Create an interactive demo**
You've just learned about the most advanced vision models ever created—next, we'll put everything together into a real project!
## Key Takeaways
- **CNNs dominated** computer vision for a decade
- **Vision Transformers** brought attention mechanisms to vision
- **Foundation models** like DINOv2 learn universal representations
- **Self-supervised learning** eliminates the need for labels
- **Modern pipelines** combine multiple approaches
- **The field evolves rapidly**—stay curious and keep learning!
:::{.callout-tip}
## Hands-On Lab
Ready to experiment with cutting-edge vision models? Try the complete interactive notebook: [**Modern Vision Models Lab**](https://colab.research.google.com/drive/1Modern_Vision_Models_123456)
Compare CNNs, Vision Transformers, and DINOv2 on your own images!
:::
:::{.callout-note}
## Series Navigation
- **Previous**: [Why Deep Learning? When Classical Methods Hit the Wall](07-why-deep-learning.qmd)
- **Next**: [Your First CV Project: Putting It All Together](09-first-cv-project.qmd)
- **Series Home**: [Computer Vision Foundations](../computer-vision-foundations.qmd)
:::
---
*You've just explored the cutting edge of computer vision! From ResNet's skip connections to DINOv2's self-supervised learning—you now understand the models that power today's AI applications. Next, we'll build something amazing with all this knowledge!*
