SpatialClaw for Inspection, Part 1: What SpatialClaw Actually Does

Tip

This post is part of the SpatialClaw for Inspection series. The next post, Part 2, turns what we learn here into a plan for image-only inspection.

Note

What I ran and what I did not. Paper: SpatialClaw: Rethinking Action Interface for Agentic Spatial Reasoning (NVIDIA and KAIST), read from the full PDF text. Code: the official repo NVlabs/SpatialClaw at commit f37b163, read directly. I ran two real pieces of it: the AST safety checker and the persistent Jupyter kernel manager. I did not run the full agent. It needs SAM3 and Depth-Anything-3 weights plus a served VLM, and none of that is set up here yet. Every stand-in is labelled where it appears.

Most “agent with tools” systems give the model a menu. Pick a tool, get JSON back, pick another. SpatialClaw gives the model a Python notebook instead, one that remembers everything. The model writes one cell, looks at what came out, then writes the next cell using the variables from the last one.

That sounds like a small change. This post is about how small it really is, how much of the headline number it explains, and what survives when you throw away the 3D half of the system.

Outputs are collapsed by default. Each one is the real captured output of the code above it.

0.1 Two reading levels

Explain like I’m five. Imagine a detective with a whiteboard. In the old way, the detective writes the entire plan on a sticky note, hands it to an assistant, and leaves. The assistant does everything blindly. In the SpatialClaw way, the detective asks the assistant to do one thing, looks at the answer on the whiteboard, and only then decides the next thing. The whiteboard keeps everything written on it. Nothing is forgotten between steps.

Explain like I’m a data scientist. A VLM backbone drives a LangGraph loop. Each step it emits one Python cell, which is AST-checked and run in a long-lived IPython kernel pre-loaded with the input images and perception primitives (SAM3 for masks, Depth-Anything-3 for depth and camera pose, plus NumPy, SciPy and Matplotlib). The observation fed back is stdout, a summary of new variables, tracebacks, and any images the cell registered with show(). The loop ends when the cell calls ReturnAnswer(...) or the step cap (max_steps = 30) is reached. No training, no fine-tuning. The paper’s claim is that this interface is the main lever.

0.2 Jargon buster

Term	What it means	Daily-life version
Action interface	The shape of what the model is allowed to do: a program, a JSON tool call, a Python cell.	The controls on a machine: a single big red button, a menu, or a full keyboard.
Persistent kernel	A Python process that stays alive between steps, so variables survive.	A whiteboard that is not wiped between questions.
Single-pass code	The model writes one whole program, runs it once.	Mailing a full recipe to a cook who cannot call you back.
Structured tool call	The model picks a named tool and fills in typed arguments, usually JSON.	Ordering from a fixed menu.
AST check	Parse the code into a syntax tree and reject it if it contains banned things, without running it.	A bouncer who reads your ID but never searches your bag.
show()	A helper that puts an image into the model’s next observation.	Holding the photo up to the detective’s face.
Planner	A separate model call, with no images, that writes an analysis plan first.	A project manager who has read the brief but never seen the site.
ReturnAnswer	A function whose call is the agent’s way to say “I’m done, here is my answer”.	Putting your pen down and handing in the exam.
SAM3	Meta’s promptable segmentation model: text, point or box in, masks out.	A very good cookie-cutter for any object you name.
Depth-Anything-3 (DA3)	Estimates depth, camera pose and a point map from images.	Turning flat photos into a rough 3D scene.
N_max	Hard cap on steps per question (30 in the paper).	A timer on the exam.

0.3 Three ways to let a model use tools

The three action interfaces the paper compares. Same tools in all three; only the way the model calls them changes.

The paper’s own framing (Section 2): single-pass code “must commit to a complete strategy before observing any intermediate mask, depth map”, and structured tool calls make it hard to compose operations “that can only be determined at test time”. SpatialClaw’s answer is the third column.

0.4 The loop, stage by stage

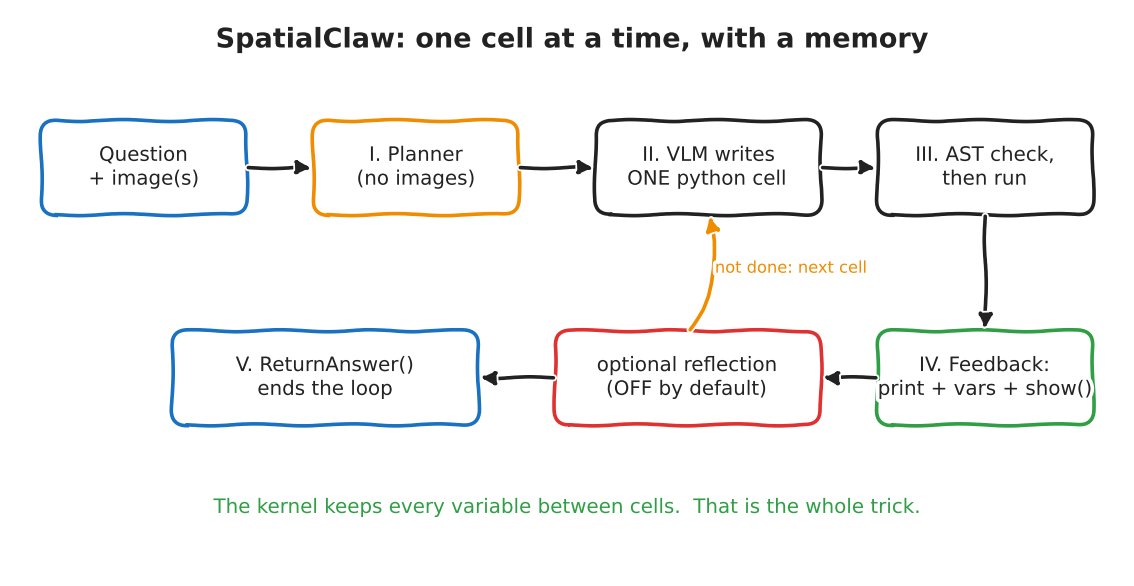

The five stages from the paper plus the optional reflection node from the repo. Reflection is drawn in red because it is off by default.

Here is the actual wiring, traced through the repo (spatial_agent/workflow.py, commit f37b163). No pseudocode, this is what the files do:

• init_node starts or resets a kernel from a KernelPool, injects InputImages, Metadata, tools, show, vlm and ReturnAnswer into it.
• plan_node (Stage I) makes a separate LLM call with the question, metadata and tool docs but no images, and appends the resulting plan to the main system prompt.
• llm_step_node (Stage II) asks the main VLM for a markdown reply with four fields: purpose, reasoning, next goal, code. A malformed reply bumps failure_count and the cell is skipped.
• execute_node (Stage III) runs SecuritySandbox.check(code) first, then executes the cell in the kernel. Images registered by show() come back as [SHOW:{...}] markers parsed out of stdout.
• feedback_node (Stage IV) turns stdout, tracebacks, new-variable summaries and shown images into the next message.
• reflection_node (optional) reviews the step. When on, it can reject a ReturnAnswer.
• router.should_continue decides: answer set, then end; step, failure or tool budget spent, then force_terminate; otherwise loop to llm_step_node.

The loop’s exit logic is short enough to read whole. Upstream, spatial_agent/nodes/router.py:37-55:

def should_continue(state: AgentState) -> str:
    if state.get("final_answer") is not None:
        return END

    if state["step_count"] >= state["max_steps"]:
        return "force_terminate"

    if state["failure_count"] >= state["max_failures"]:
        return "force_terminate"

    if state["max_tool_calls"] > 0 and state["total_tool_calls"] >= state["max_tool_calls"]:
        return "force_terminate"

    return "llm_step_node"

And what happens when the budget runs out matters a lot for inspection. force_terminate (router.py:58) does not return “unknown”. It makes one more call to the VLM with key frames and a chain-of-thought prompt, and returns whatever that says as the answer. If that fails it falls back to a regex over the chat history. So a run that ran out of steps still produces an answer. Hold that thought for Part 2.

0.5 Run it: the safety checker

spatial_agent/kernel/safety.py holds the AST check. It forbids a list of modules (os, subprocess, sys, socket, torch, …) and builtins (open, exec, eval, __import__), then adds a regex pass for file I/O such as .save(. I loaded that file verbatim and fed it nine cells. The cells are only parsed, never run. Script: notebooks/spatialclaw-inspection/smoke_safety.py.

Show output

PASSED   benign: mask area          -> None
PASSED   benign: scipy distance     -> None
BLOCKED  direct: import os          -> Forbidden import: 'os'. Module 'os' is not allowed.
BLOCKED  direct: open()             -> Forbidden builtin call: 'open()'. This operation is not allowed.
BLOCKED  direct: eval               -> Forbidden builtin call: 'eval()'. This operation is not allowed.
PASSED   indirect: getattr open     -> None
PASSED   indirect: dunder import    -> None
PASSED   indirect: via numpy        -> None
PASSED   indirect: str format       -> None

Read that carefully. Direct attempts are caught. The four “indirect” cells (building the name open from two strings, reaching __import__ through __builtins__, and so on) pass the check. What I measured is only that the checker lets them through. I did not execute them, so I do not claim they would succeed in the kernel. The honest summary: this is a guard against a model that is clumsy, not against one that is adversarial. The module’s own docstring calls it a “security sandbox”; for the paper’s benchmark use that is fine. For a factory floor it is not enough, and Part 2 plans a real sandbox.

0.6 Run it: the persistent kernel

spatial_agent/kernel/manager.py is the part that makes “the whiteboard is not wiped” true. I used JupyterKernelManager and the ReturnAnswer source verbatim. Script: notebooks/spatialclaw-inspection/smoke_kernel.py.

Stand-ins, clearly labelled: the “agent” is a hard-coded list of five cells, not a VLM. The image is a synthetic bright solder pad with three dark circular voids, not a real X-ray. The “mask” is a plain threshold, not SAM3. The 5% fail limit in the last cell is arbitrary and mine. What is real: the kernel process, variables surviving between cells, a traceback being captured, the variable summary, and the answer sentinel.

Show output

--- 1. build evidence (stand-in for SAM3)  (0.14s)
pad px: 25433  void px: 1635
--- 2. reuse variables from step 1  (0.23s)
void count: 3  sizes: [437, 1005, 193]
void ratio: 6.43%
--- 3. agent makes a mistake  (0.07s)
TRACEBACK (last line): NameError: name 'largest_void_area' is not defined
--- 4. agent revises after seeing the traceback  (0.00s)
largest void px: 1005
--- 5. commit  (0.01s)
[ReturnAnswer] Answer submitted: FAIL
--- variables the feedback step would summarise:
   img {'type': 'ndarray', 'shape': '(200, 200)', 'dtype': 'float64', 'size_mb': 0.32}
   pad {'type': 'ndarray', 'shape': '(200, 200)', 'dtype': 'bool', 'size_mb': 0.04}
   voids {'type': 'ndarray', 'shape': '(200, 200)', 'dtype': 'bool', 'size_mb': 0.04}
   sizes {'type': 'ndarray', 'shape': '(3,)', 'dtype': 'float64', 'size_mb': 0.0}
   largest_void_area {'type': 'int'}
   ... (13 variables in total; list trimmed here, full list in outputs/smoke_kernel.txt)
--- sentinel: {'text': 'FAIL', 'raw_value': 'FAIL'}

Cell 2 used voids and pad from cell 1 without being told where they came from. Cell 3 failed and cell 4 recovered, because sizes was still alive. That is the entire mechanism. It is also, I would argue, the whole idea: a failed step costs one cell, not the whole run.

One more thing the run printed, which is not in the README: the kernel logged Kernel is running over TCP without encryption. On a single machine that is a note, not a bug, but if the kernel ever moves to another host it is a finding.

0.6.1 Step through it

Variables alive in the kernel:

The cells above are shortened for display; the real ones are in smoke_kernel.py.

0.7 What the numbers say, and what they do not

The paper reports 59.9% average over 20 benchmarks, +11.2 points over the best prior agent. Those two numbers hide a decomposition that the paper’s own tables let you do. All rows below are from the paper’s Table 2 (same backbone, same tools, same system prompt; only the interface differs). The averages are over all 20 benchmarks.

	No tools	Single-pass code	Structured tool call	SpatialClaw
Average, 20 benchmarks	53.4	55.2	56.7	59.9

My arithmetic on those numbers, not a claim from the paper:

• Having tools at all (SpatialClaw vs no tools): +6.5 points.
• The code-in-a-kernel interface (SpatialClaw vs structured tool call, same tools): +3.2 points.
• The best prior agent in their Table 3 (SpaceTools) scores 48.7, below even the no-tool baseline of 53.4 on the same Gemma4-31B backbone. Table 3 runs each baseline through its official implementation, so those agents differ in prompts and tooling too. Read together with the numbers above: of the +11.2 headline, only about 3 points are cleanly attributable to the interface; the rest is the toolset, the prompt and the surrounding setup.

That does not make the interface idea wrong. It makes it a modest, real gain on top of a lot of careful engineering. The paper’s own attribution (Finding 4, an LLM judge over 1,095 cases where SpatialClaw won and the tool-call agent lost): 52.2% composition (chaining tools in one program), 19.5% control flow (if/for over intermediate results), 28.3% neither.

And on the single-image benchmarks, which are the ones that look like inspection:

Benchmark	No tools	Single-pass	Tool call	SpatialClaw
ERQA	58.3	58.3	59.0	61.3
Omni3D	51.7	48.2	55.7	54.3
OmniSpatial	57.3	60.0	59.6	63.6
SPBench	55.1	58.2	60.5	68.4
BLINK	75.7	73.9	73.9	73.4

Two of five single-image rows are not wins. On Omni3D the plain tool-call agent is ahead, and on BLINK the no-tool baseline is ahead of everything with tools. Tools can hurt when the question is mostly “recognise what this is”. That is a very important sentence for inspection, where half the job is recognition.

Where does it still fail? Finding 5 sorts 1,000 wrong answers: geometric computation error 21%, tool selection or coverage error 18%, tool-unsupported visual judgement 14%, VLM hallucination 14%, recovery failure 8%, perception primitive error 7%. The authors’ own limitation section says the bottleneck is perception quality, not the interface.

0.8 Paper versus repo: the gaps I found

These are things you only see by reading both:

• Reflection is off by default. enable_reflection: bool = False (spatial_agent/config.py:192). The paper’s five-stage figure does not include it. The repo has a whole answer-rejection protocol (reflection_node.py:147-170), but a default run never uses it. When it is on, it cannot reject forever: after max_total_answer_attempts = 5 or when min_budget_for_answer_reject = 3 steps remain, the concern is logged and the answer is accepted anyway (config.py:195-196, reflection_node.py:156-158).
• Timeouts are generous. timeout_sec = 600 per cell, max_steps = 30, max_failures = 30 (config.py:154-157). Fine for a benchmark farm, long for a production line.
• Thinking is on, with huge budgets. The Gemma config sets max_tokens: 131072 with enable_thinking: true for main, planning and general roles. Cost and latency per sample are not reported in the paper text I read, so I make no claim about them.
• The “sandbox” is a static filter (shown above).
• The runtime is a cluster. Three services (vLLM, a GPU tool server, the agent) and SLURM chain jobs. The README says single-machine entry points exist; I have not run them.

0.9 A note on licences

SpatialClaw’s own code is under NVIDIA’s non-commercial research licence, and SAM3 uses Meta’s custom SAM License, so this series rebuilds the idea from the paper with my own code instead of copying theirs. I am not a lawyer; check the licences yourself before using any of this at work.

0.10 What I take away

1. The core idea is small and real: keep state between steps, and let the model write the glue.
2. Its measured gain over a good tool-call agent with the same tools is about three points on average, concentrated in tasks that chain geometry. Not a free lunch on recognition.
3. Half the system (3D reconstruction, video, SLURM) is irrelevant to image inspection. The other half (kernel, loop, feedback, show()) is exactly the part we can rebuild in a few hundred lines with our own tools.

Part 2 lays out that rebuild: what to keep, what to swap, what to drop, how licensing shapes it, and how I will measure whether it beats the tool-call agent I already built.
