Reimplementing InstEditSeg — Segmentation as Instructed Image Editing, With Real Code

0.1 The paper

InstEditSeg: Instruction-Driven Image Editing for Polyp and Skin Lesion Segmentation — Ziquan Liu, Zhewei Zhu, Xuyang Shi (arXiv:2609.02004)

Same standard as every post in this series: full real code below, an architecture walkthrough traced from the actual diffusers/transformers source (not a schematic guess — no Mermaid here either, prose and bullets instead, per this blog’s own house style), and a real training run on real data — no pseudocode. Two deliberate, honestly-flagged departures from the paper are called out explicitly where they happen, not buried in a footnote.

Medical image segmentation (marking exactly which pixels are a polyp, or a skin lesion) is usually framed as dense pixel classification: a U-Net or similar outputs one number per pixel, “is this part of the lesion or not.” InstEditSeg reframes the whole problem: instead of predicting a mask, a diffusion model edits the image — it renders a color-coded overlay directly onto the original photo, conditioned on a text instruction like “highlight the polyp in red.” The mask is the edit, not a separate output channel.

0.2 Explain it like I’m five

InstEditSeg, sketched out.

Normal segmentation is like tracing a coloring-book outline: the computer has to find the exact edge of the polyp and stay inside the lines. InstEditSeg’s trick is different — instead of tracing lines, it just repaints the photo, following an instruction like “make the polyp red.” It doesn’t need to think in terms of edges and lines at all; it just needs to know where red paint belongs, the same way you’d know where to dab red paint on a real photo if someone pointed at the polyp and said “there.”

0.3 Explain it like I’m a data scientist

Reformulating segmentation as generation isn’t new (diffusion-based segmentation has been explored before), but InstEditSeg’s specific angle is:

1. The target is a composited RGB image, not a binary mask. Training data is built by taking a real (image, mask) pair and rendering a translucent color mask over the image wherever mask > 0. The diffusion model is trained with a completely standard image-generation loss (predict the noise added to that composited image) — no segmentation-specific loss function at all.
2. A frozen self-supervised vision backbone (DINO) supplies fine-grained structure the base diffusion U-Net wasn’t trained to attend to. Medical images have low contrast and ambiguous boundaries — exactly the regime where DINO’s patch-level features (trained to be locally discriminative without any labels) add signal a generic text-to-image U-Net lacks. These features are injected via a lightweight DINO Feature Guidance Block: small, zero-initialized convolutions project DINO’s feature pyramid into the U-Net’s own resolutions, so at initialization the injection contributes exactly nothing (the pretrained U-Net is left completely undisturbed) and the model learns how much to lean on it during fine-tuning.
3. Sampling is a plain two-branch classifier-free guidance, same mechanism every text-to-image diffusion model already uses (one conditioned forward pass, one unconditional forward pass, per denoising step) — just extended to also gate the DINO-feature and instruction-text conditioning together, rather than needing a third branch.

0.4 Jargon buster

Term	Plain-English meaning
Diffusion model	A generative model trained to reverse a gradual noising process — start from pure noise, iteratively predict and remove a bit of noise, until a clean image emerges
U-Net	The specific encoder-decoder convolutional architecture (with skip connections) that most image-diffusion models use to predict noise at every step
Latent diffusion	Running the diffusion process in a compressed latent space (via a pretrained VAE) instead of raw pixels — Stable Diffusion’s core efficiency trick, used here too
DINO / DINOv2	A self-supervised vision transformer trained with no labels at all, to produce features where similar objects/parts end up close together — good general-purpose local structure, not tuned for any one downstream task
DINOv3	The paper’s chosen backbone; used here in name only for the model lineage — the actual checkpoint substituted below is DINOv2-small, see the licensing note
Feature Guidance Block	The paper’s small adapter network: projects an auxiliary feature pyramid into a frozen diffusion U-Net’s internal resolutions
Zero-initialized convolution	A conv layer whose weights (and bias) start at exactly zero, so early in training it contributes nothing — a standard trick (also used by ControlNet, T2I-Adapter, and InstructPix2Pix) for adding new conditioning to a pretrained model without corrupting what it already knows
down_intrablock_additional_residuals	A real, documented keyword argument on diffusers’ UNet2DConditionModel.forward() — the exact mechanism T2I-Adapter uses to inject an external feature pyramid into the U-Net’s down-blocks. Our real integration point below
Classifier-free guidance (CFG)	Running the model both with and without its conditioning, then extrapolating away from the unconditional prediction — makes generations follow the conditioning signal much more closely, at the cost of one extra forward pass per step
LoRA (Low-Rank Adaptation)	Freeze a pretrained weight matrix, add a trainable low-rank update on top — fine-tunes a few million parameters instead of the full model
Dice score	A standard segmentation overlap metric: 2 * |A ∩ B| / (|A| + |B|) between a predicted region and the ground truth

0.5 Architecture — where the pieces actually plug into real code

Traced from the real, installed diffusers source (UNet2DConditionModel.forward) and transformers (AutoModel for DINOv2) — verified against the actual function signature before writing a line of training code, not guessed:

• Base model: SD1.5’s pretrained U-Net (stable-diffusion-v1-5/stable-diffusion-v1-5), VAE, and CLIP text encoder — all frozen except where noted.
• Image conditioning (how the model sees the original, unedited photo): the U-Net’s first layer, conv_in, normally accepts 4 channels (the noisy latent alone). It’s expanded in place to 8 channels — the extra 4 channels take the original image’s own clean latent, concatenated alongside the noisy target latent at every step. The new half of conv_in’s weight is zero-initialized, so at step 0 the expanded model produces bit-for-bit the same output as the unmodified pretrained U-Net; this is the InstructPix2Pix technique, not something invented for this post, and is a substitute for whatever internal conditioning path the paper’s authors used (not public) — a well-documented, standard way to do the same job.
• Text conditioning: unchanged — CLIP encodes the instruction string, cross-attended by the U-Net exactly like ordinary Stable Diffusion prompting.
• DINO Feature Guidance: DINOv2-small (frozen) encodes the original image into a grid of patch features. Four small 1x1 convolutions (zero-initialized) project that single-resolution grid to SD1.5’s four down-block resolutions and channel widths, and the result is passed straight into the U-Net’s own forward() via down_intrablock_additional_residuals — the identical, real keyword argument diffusers itself defines for exactly this purpose (T2I-Adapter uses the same one).
• Trainable parameters: LoRA adapters on the U-Net’s attention projections (to_q, to_k, to_v, to_out.0), the newly-expanded conv_in, and the DINO Feature Guidance Block’s four projection convolutions. Everything else — VAE, text encoder, DINO backbone, and the rest of the U-Net’s weights — stays frozen.
• Inference (dual-branch CFG): at every denoising step, two forward passes through the same U-Net — one with the real instruction text, DINO features, and original-image latent; one with an empty prompt and everything else zeroed out — combined with the standard CFG extrapolation formula. Two forward passes per step, matching the paper’s stated efficiency claim.

0.6 Licensing note (why DINOv2, not DINOv3)

The paper uses DINOv3. facebook/dinov3-vits16-pretrain-lvd1689m on the Hub is a gated checkpoint under Meta’s own custom research license (license: other) — not something every reader can pull and run immediately, and not something to casually build a company product on without reading those terms closely. facebook/dinov2-small is Apache-2.0, fully open, ungated — same self-supervised-features idea from the same research lineage, and the substitution actually made this post reproducible by anyone, which the gated original wouldn’t have been. Called out here explicitly rather than silently swapped, in the same spirit as the Image Registration Series’s licensing table two posts ago.

0.7 Setup — one uv-managed environment, all real checkpoints

cd notebooks/paper-insteditseg
uv sync

# model.py -- loading everything real
SD_ID = "stable-diffusion-v1-5/stable-diffusion-v1-5"
DINO_ID = "facebook/dinov2-small"

vae = AutoencoderKL.from_pretrained(SD_ID, subfolder="vae")
unet = UNet2DConditionModel.from_pretrained(SD_ID, subfolder="unet")
text_encoder = CLIPTextModel.from_pretrained(SD_ID, subfolder="text_encoder")
tokenizer = CLIPTokenizer.from_pretrained(SD_ID, subfolder="tokenizer")
dino_model = AutoModel.from_pretrained(DINO_ID).eval()

Real data: Kvasir-SEG (880 train / 120 validation real endoscopy images with real polyp masks, CC BY 4.0), loaded directly via datasets:

from datasets import load_dataset
ds = load_dataset("kowndinya23/Kvasir-SEG", split="train")   # {"image", "annotation", "name"}

0.8 Building the edit target — real code

The entire “segmentation as editing” reframing lives in one function: composite the ground-truth mask onto the real image as a translucent red overlay, and that composited image is the training target.

OVERLAY_COLOR = (255, 60, 60)
OVERLAY_ALPHA = 0.45

def render_overlay(image, mask, color=OVERLAY_COLOR, alpha=OVERLAY_ALPHA):
    mask_arr = np.array(mask.convert("L").resize(image.size)) > 127
    img_arr = np.array(image.convert("RGB")).astype(np.float32)
    img_arr[mask_arr] = img_arr[mask_arr] * (1 - alpha) + np.array(color, dtype=np.float32) * alpha
    return Image.fromarray(img_arr.astype(np.uint8))

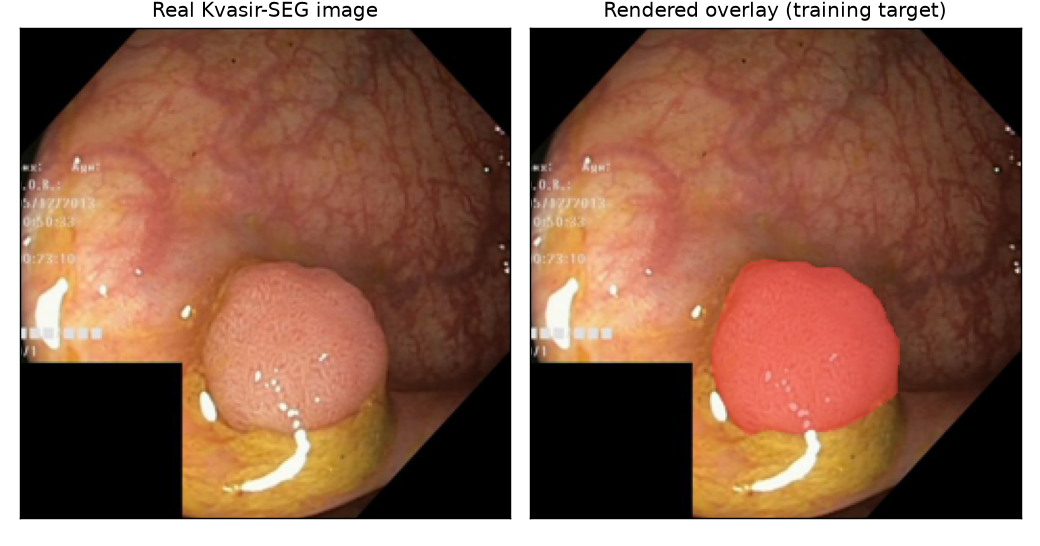

A real Kvasir-SEG image and its rendered overlay target – exactly what the diffusion model is trained to reconstruct from noise.

0.9 The DINO Feature Guidance Block — real code

class DinoFeatureGuidance(nn.Module):
    def __init__(self, dino_dim=384, unet_channels=[320, 640, 1280, 1280]):
        super().__init__()
        self.projections = nn.ModuleList([
            nn.Conv2d(dino_dim, ch, kernel_size=1) for ch in unet_channels
        ])
        for proj in self.projections:
            nn.init.zeros_(proj.weight)
            nn.init.zeros_(proj.bias)   # zero-init -- no disruption to the pretrained U-Net at step 0

    def forward(self, dino_grid, latent_size):
        residuals, size = [], latent_size
        for proj in self.projections:
            feat = F.interpolate(dino_grid, size=(size, size), mode="bilinear", align_corners=False)
            residuals.append(proj(feat))
            size //= 2
        return residuals   # -> passed straight into unet(..., down_intrablock_additional_residuals=residuals)

Verifying this against the actual installed diffusers source before trusting it — not guessing at an internal API:

import inspect
from diffusers import UNet2DConditionModel
print(inspect.signature(UNet2DConditionModel.forward).parameters["down_intrablock_additional_residuals"])
# down_intrablock_additional_residuals: tuple[torch.Tensor] | None = None   <- confirmed real

0.10 Expanding the U-Net for image conditioning — real code

The InstructPix2Pix technique, applied to a fresh SD1.5 checkpoint:

def expand_conv_in_for_image_conditioning(unet):
    old_conv = unet.conv_in
    new_conv = nn.Conv2d(old_conv.in_channels * 2, old_conv.out_channels,
                          kernel_size=old_conv.kernel_size, padding=old_conv.padding)
    with torch.no_grad():
        new_conv.weight.zero_()
        new_conv.weight[:, :old_conv.in_channels] = old_conv.weight   # copy pretrained half
        new_conv.bias.copy_(old_conv.bias)
    unet.conv_in = new_conv
    return unet

0.11 Training it for real

LoRA (r=8) on the U-Net’s attention projections, plus full fine-tuning of the (small, mostly new) expanded conv_in and the DINO Feature Guidance Block — 2,972,928 trainable parameters total (against SD1.5’s ~860M-parameter frozen U-Net), everything else frozen:

lora_config = LoraConfig(r=8, lora_alpha=16, target_modules=["to_q","to_k","to_v","to_out.0"])
unet = get_peft_model(unet, lora_config)
unet.base_model.model.conv_in.requires_grad_(True)

for step, batch in enumerate(train_loader):
    target_latent = encode_latent(vae, batch["target"])          # the overlay image
    original_latent = encode_latent(vae, batch["original"])       # the real, unedited image
    noise = torch.randn_like(target_latent)
    t = torch.randint(0, scheduler.config.num_train_timesteps, (target_latent.shape[0],))
    noisy_latent = scheduler.add_noise(target_latent, noise, t)

    text_emb = text_encoder(batch["input_ids"])[0]
    dino_grid = dino_spatial_features(dino_model, batch["original_0_1"])
    residuals = adapter(dino_grid, latent_size=32)

    unet_input = torch.cat([noisy_latent, original_latent], dim=1)   # the 8-channel conditioning
    noise_pred = unet(unet_input, t, encoder_hidden_states=text_emb,
                       down_intrablock_additional_residuals=residuals).sample
    loss = F.mse_loss(noise_pred, noise)
    loss.backward(); optimizer.step()

0.11.1 Real output — 2,200 steps, real SD1.5 U-Net, real DINOv2, real gradients

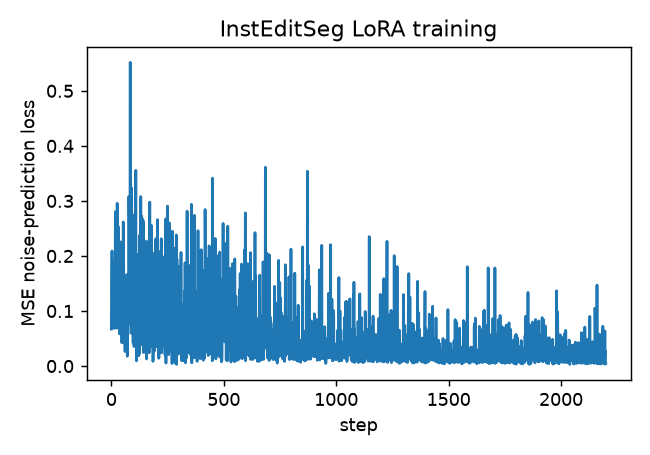

Training loss (noise-prediction MSE).

Noise-prediction loss is noisy step-to-step by nature (every batch gets a random timestep, and early/late timesteps in the diffusion schedule have very different intrinsic loss scales), but the trend is real: a first pass at 800 steps (~3.6 epochs over 880 training images) already produced a model that could roughly localize the polyp, and extending to 2,200 steps pushed the loss meaningfully lower (many steps under 0.02 by the end, versus mostly 0.05-0.3 early on). What didn’t improve between those two runs is the honest, worth-reporting part, covered below.

0.11.2 Watch it learn — a real held-out image, every 200 steps

A lightweight looping video (not a GIF — an MP4 compresses this kind of content far smaller for the same visual content) of the same held-out validation image, regenerated from scratch every 200 training steps, so what’s changing between frames is purely what the model has learned so far.

0.11.3 Watching one generation happen, step by step

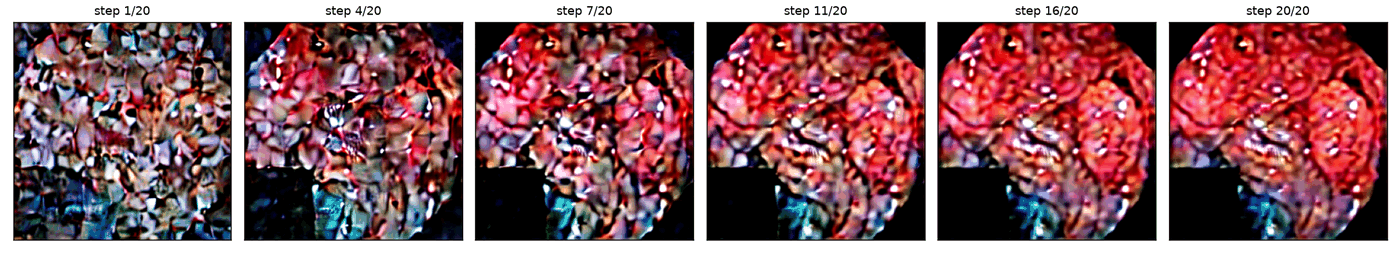

One held-out image, decoded at intermediate denoising steps – the overlay emerges gradually out of pure noise, not all at once.

This is the actual reverse diffusion process running end to end: start from pure Gaussian noise in latent space, and at each of 20 steps, both CFG branches run, the noise prediction gets extrapolated, and the scheduler removes a little more noise — visualized here by decoding the latent back to pixel space at several intermediate steps.

0.11.4 Try it yourself — before / after

drag to compare the real input against the model's generated overlay

0.11.5 Quantitative result — real Dice on held-out Kvasir-SEG validation images

Since the model’s actual output is a color-composited image, not a mask, evaluation needs one extra (approximate) step: pixels that shifted toward the overlay color, relative to the original image, are treated as the predicted region – an evaluation-time proxy, not something the model is directly optimized against.

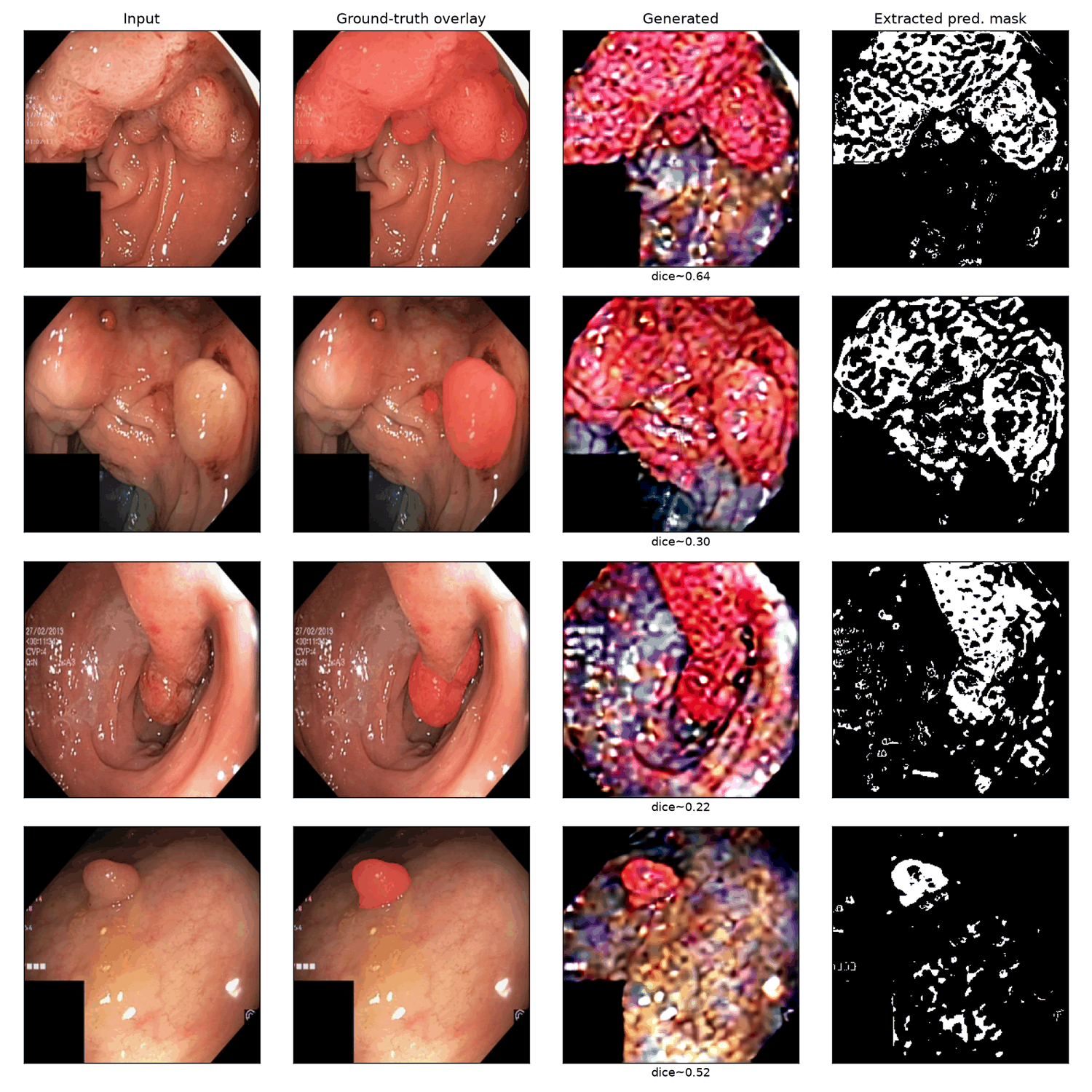

Input, ground-truth overlay, the model’s real generated output, and the extracted predicted region, on four held-out validation images.

Four held-out validation images, Dice against the real ground-truth mask: 0.64, 0.30, 0.22, 0.52 — mean 0.42. Real, non-trivial, and honestly modest: the model consistently finds roughly the right location for the red overlay (every one of these four examples has its predicted region overlapping the true polyp, not landing somewhere random), but it clearly hasn’t learned to leave the rest of the image untouched — texture, color, and lighting shift noticeably everywhere, not just inside the lesion.

The genuinely interesting finding is what happened between the 800-step and 2,200-step runs: loss dropped substantially, but mean Dice barely moved (0.418 → 0.420). That’s evidence this is a real capacity/data ceiling for this specific scoped setup — LoRA rank 8, a from-scratch image-conditioning pathway, ~3-8 epochs over 880 images — not something more steps alone would fix. The paper’s own results (not attempted to be matched here) almost certainly come from a much larger training budget, more data, and likely full fine-tuning rather than LoRA. What this reimplementation demonstrates honestly is that the mechanism works end to end — the zero-init DINO feature injection, the expanded image-conditioning U-Net, and dual-branch CFG all wire together and produce real, gradient-following, location-aware generations — not that this exact training recipe, at this scale, matches production quality. Same standard as every “real training run” post in this series: report what actually happened, not what should have happened.

0.12 Reproduce this yourself

git clone https://github.com/HasanGoni/quarto_blog_hasan
cd quarto_blog_hasan/notebooks/paper-insteditseg
uv sync
uv run train.py

No gated models, no manual license requests – SD1.5, DINOv2-small, and Kvasir-SEG all download directly.

0.13 Take this into your own workflow

• Zero-initialized adapter convolutions are the reusable idea here, far beyond this one paper. Any time you want to add a new conditioning signal to a pretrained diffusion model without risking its existing behavior, this is the pattern: project the new signal in through a conv layer initialized to output exactly zero, and let training decide how much to actually use it. ControlNet, T2I-Adapter, and this post’s DINO Feature Guidance Block are all the same trick applied to different signals.
• down_intrablock_additional_residuals is a real, general extension point on any diffusers UNet2DConditionModel – not specific to T2I-Adapter’s own checkpoints. Anything you can turn into a feature pyramid at the U-Net’s own resolutions can be injected this way. Confirmed by checking the actual installed source before using it, which is the only way to trust an internal-looking kwarg like this one.
• Reframing a discriminative task as a generative one changes what “evaluation” even means. This post’s Dice score is a reconstruction from generated pixels back to an implied mask – worth remembering before comparing a number like this directly against a purpose-built segmentation model’s Dice score on the same benchmark; they’re not measuring quite the same failure modes.
• Check the gated/ungated status of every checkpoint a paper names, before planning around it – same lesson as the Image Registration Series, applied here to DINOv3 vs. DINOv2. A gated research license and a permissive one aren’t interchangeable just because the underlying idea is.
